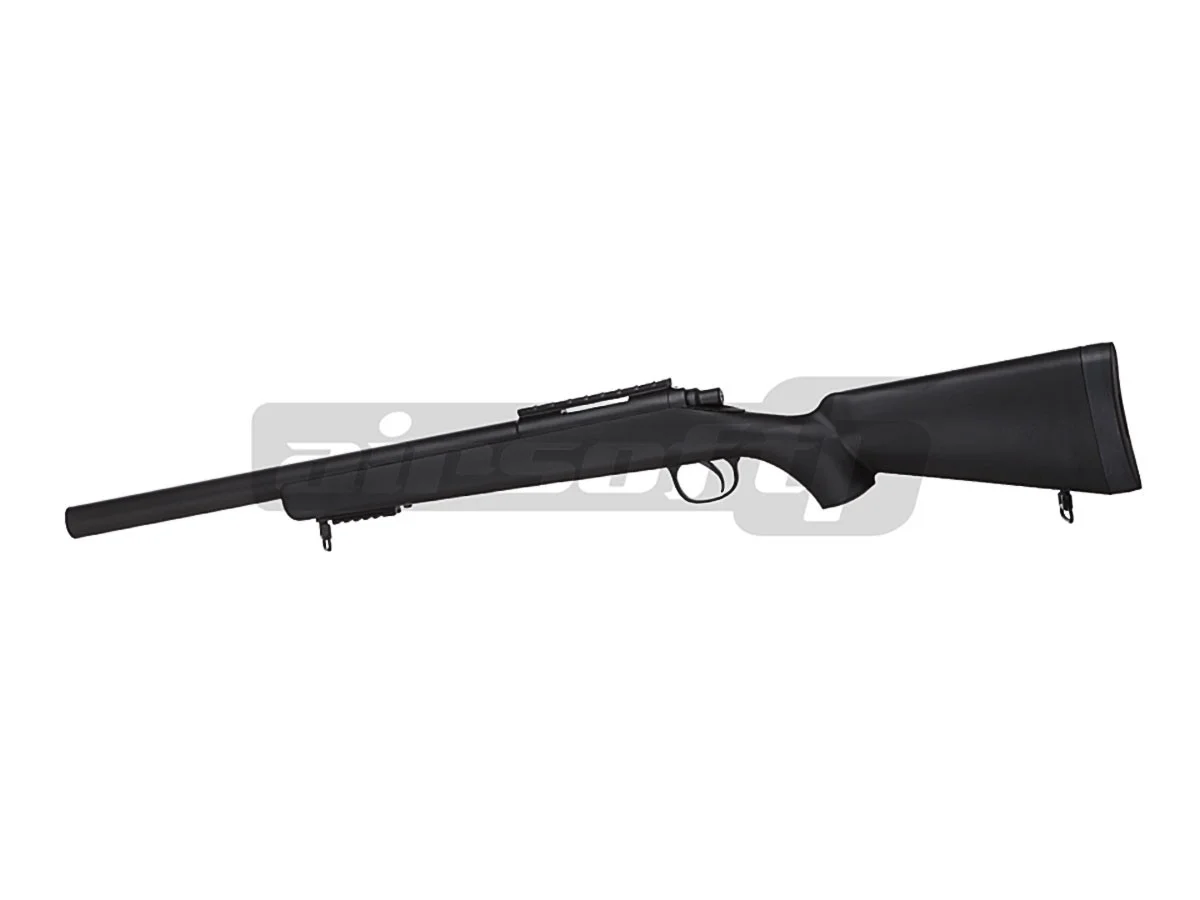

WELL MB03 Short

Presentation

This airsoft replica is fundamentally a sniper rifle based on elements from several existing platforms. The receiver resembles those of hunting rifles, the barrel is similar to military ones, and the body features a modern and innovative design. Its design is intended to provide good maneuverability and stability during operation. The firing system and the barrel itself tend to mimic the series based on the famous VSR T.M., but the resemblance stops there. Let's go into detail.

Exterior of the Replica

This replica has a body made of ABS plastic, with aluminum elements, and is secured with screws both between panels and in the receiver. The outer barrel, flash hider, and receiver or cylinder support are made of metal. The replica is slightly front-heavy due to the simple stock. The body shape is extremely comfortable in most prone positions. On the upper part of the body, there is a rail for mounting scopes or other sighting devices.

Interior of the Replica

To operate, the replica does not require gas, CO2, electric power, heat, impact, or other external power sources. Its cocking is done manually, a process that loads the BB and tensions the internal spring that will generate the air blast necessary for expelling the respective BB. The simple system will allow the replica to be used in almost any climatic environment. Low/high temperatures, extreme humidity, and so on. The mechanism of the replica or trigger box is made of ABS plastic and successfully withstands the included spring. The pin that retains the piston or sear is made of metal. The cylinder is made of aluminum, while the piston set and guide are made of ABS plastic. The speed of the replica is approximately 125-130 m/s measured with 0.20g BBs. Considering the speed, we recommend using heavier BBs. This platform is not 100% compatible with upgrade components intended for official platforms such as Tokyo Marui or Maruzen.

Power Supply

The replica is delivered disassembled, and the package includes all the tools necessary for its assembly. It is important not to rush the assembly process to avoid damaging the threads. Avoid excessive disassembly and reassembly of the replica as this process can jeopardize the integrity of the threads. The package includes the replica and a magazine with a capacity of 25 6mm BBs. It is recommended to use high-quality BBs for optimal performance. Do not reuse BBs and do not use low-quality BBs as this may damage the replica.
