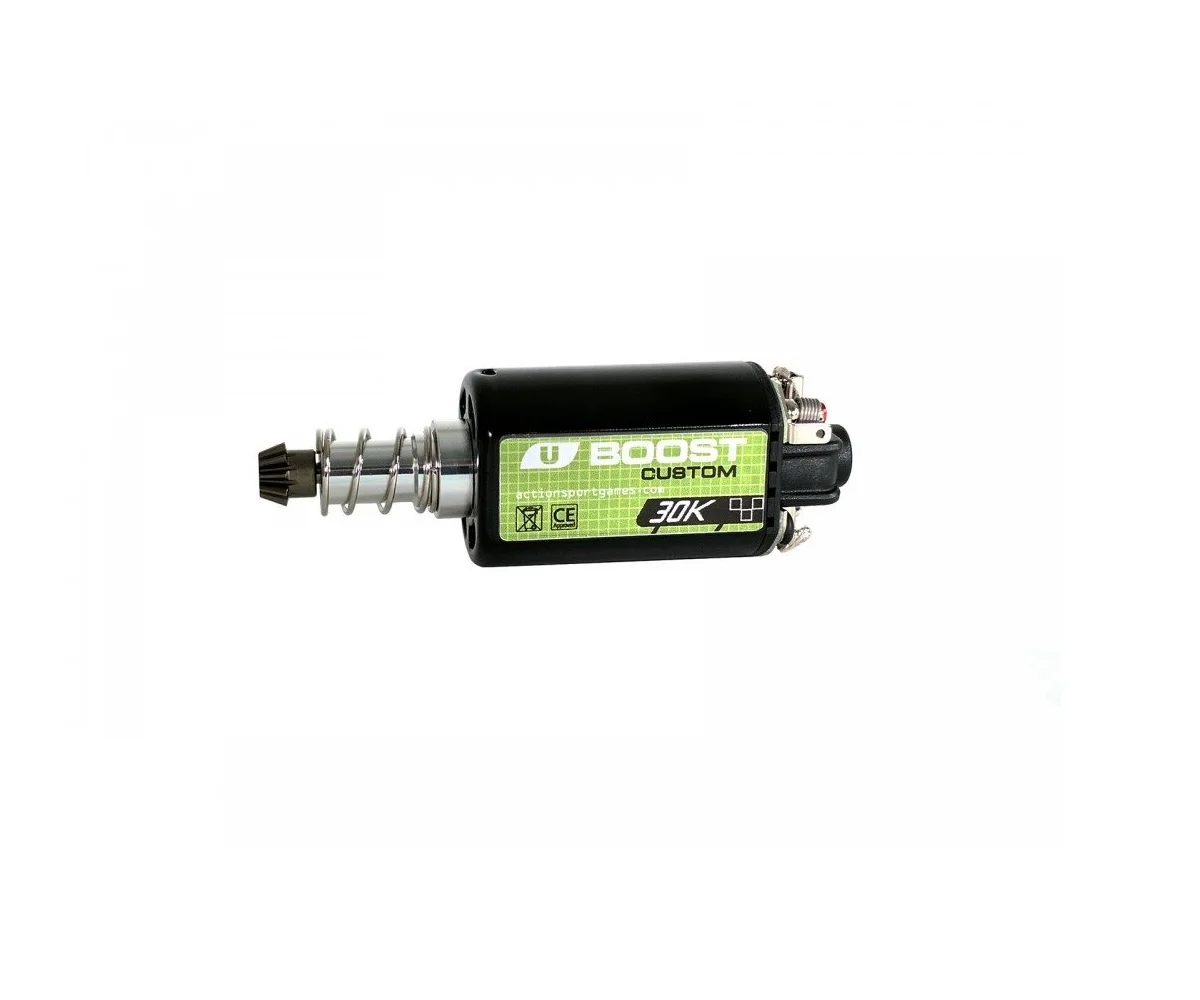

Ultimate Motor Ultra High Torque 30k Long

We present the ASG Ultimate U30000 motor. This motor is part of the high-end category of motors offered by ASG. This series of motors stands out from the classic ones in several ways. Firstly, the external structure is made from CNC aluminum, providing significantly improved rigidity and more efficient heat dissipation. The rotor is supported by bearings at both ends, thus offering low resistance to rotation when the motor heats up, eliminating the expansion factor of the bushings found in most standard motors.

The motor pinion is very durable, made from hardened steel through CNC machining. This way, its wear is much lower than that of classic cast pinions. However, you must be very careful with the matching of the pinion tooth profile with the bevel gear tooth profile.

The windings of the motor are made from high-quality copper wire with insulation resistant to high temperatures. This reduces the risk of the insulation melting and short-circuiting the coil. For those in the know, the rotor has 16 TPA, which will provide this motor with a balance between power and rate of fire.

The motor magnets are made from neodymium and have a thick profile across their entire surface. They are well anchored and provide a constant magnetic field even at high temperatures. However, it should be considered that the current demand increases with temperature.

The motor brushes are positioned vertically and have a thicker profile than those of classic motors. Thus, they will provide much better electric current transfer, consuming less current while also offering improved acceleration compared to motors using classic brushes.

For powering the motor, you can use NiMh batteries of 8.4-9.6V or LiPo batteries of 7.4-11.1V with a discharge rate of up to 50C. We do not recommend powering the motor with a higher voltage as it will negatively affect the lifespan of the motor and the gearbox.
