G&P M4 005 Recoil System

Presentation

The principle of operation of existing airsoft replicas on the market is predominantly electric. There is nothing wrong with this aspect, except that recoil is often completely absent. Until now, gas-powered replicas have ruled the recoil game but have always suffered from the close relationship between gas and temperature, rarely managing to achieve any consistency in power, and even then for a satisfyingly short period. Electric replicas have a significantly superior power consistency and are much more efficient in many ways; accuracy, consumption, costs, maintenance, and other aspects.

G&P launches a new range of replicas equipped with recoil and immediately manages to captivate enthusiasts. The linear system, based on weight and the correct positioning of the weight, will satisfy a large part of those desiring realism regarding recoil. The base platform is the well-known M4 that dominates the airsoft replica market, so accessories and parts will be readily available. This design is intended for battles in open spaces, approaching the standard length of the M4A1.

Exterior of the Replica

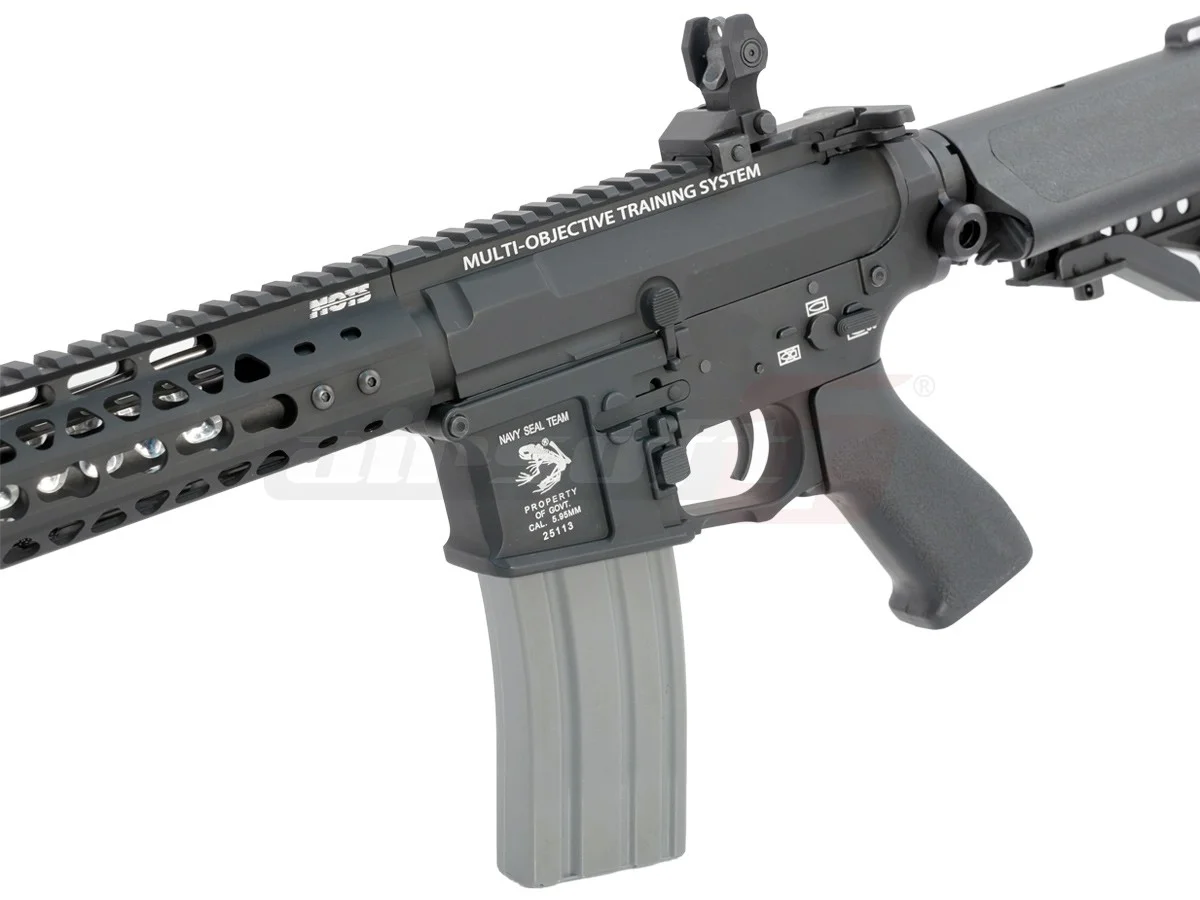

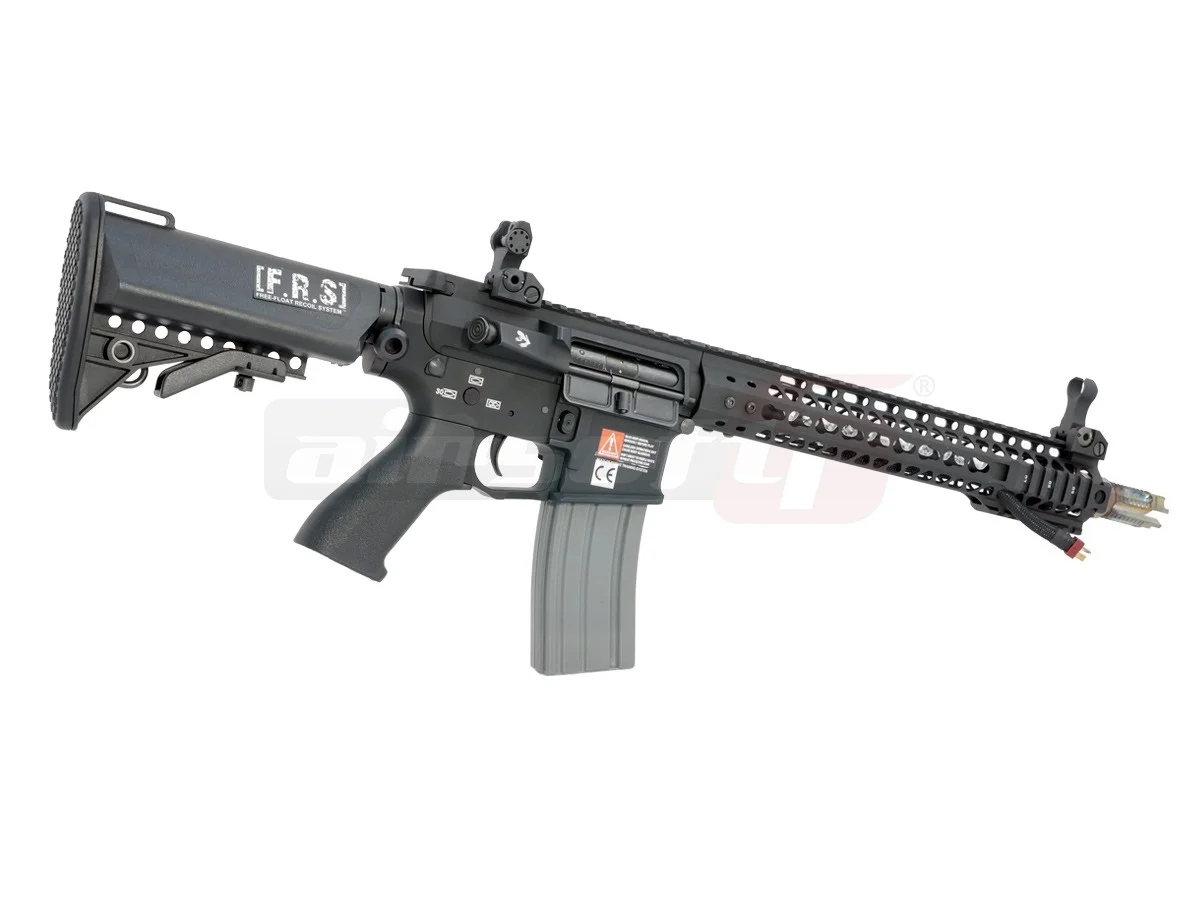

This replica manufactured by G&P is made from the most modern alloys to provide a reliable, useful, and aesthetically pleasing product. Its design is modern, and the front rail system equipped with KEYMOD elements as well as standard rail sections will offer good customization options. The Vltor-type body of the replica is made from lightweight metal alloys, thus improving its handling and, obviously, the user's performance. The grip and stock are made from ABS plastic. The controls of the replica are dedicated to right-handed users. The fire selector is located only on the left side, while the mag catch is dual-action. The replica is equipped with a standard rail along the entire length of its upper part, and in case an optical device is not chosen, classic, foldable sights can be used.

For supporting the replica, quick detach systems can be used, located above the grip and behind the stock.

Interior of the Replica

This is where the interesting part begins. Currently, we can only say that it is equipped with a relatively standard gearbox, the casing having minor modifications to support the recoil transmission system located in the stock tube. Hence the necessity to mount the power connector at the front. It is almost impossible to move the electrical installation to the back due to the recoil system. As we have been taught, the reinforced gearbox is equipped with 8mm bearings, and the high alloy gears will provide a reliable base over time. The motor of the replica is a high torque type. More specifically, G&P M140. Obviously, this motor is intended to move the entire system, including the recoil.

The inner barrel has a standard diameter of 6.08mm and a length of 338mm. The hop-up chamber is made of metal and allows for consistent adjustment of the hop-up adjustment. Like other G&P replicas, it is possible that the barrel is greased and will require thorough cleaning. This is not a bad thing; at least we will know that it will not oxidize during transport from the other side of the world. Regarding the internal components of the gearbox, it is rumored to be standard, but currently, we have no way to verify this aspect.

Power Supply

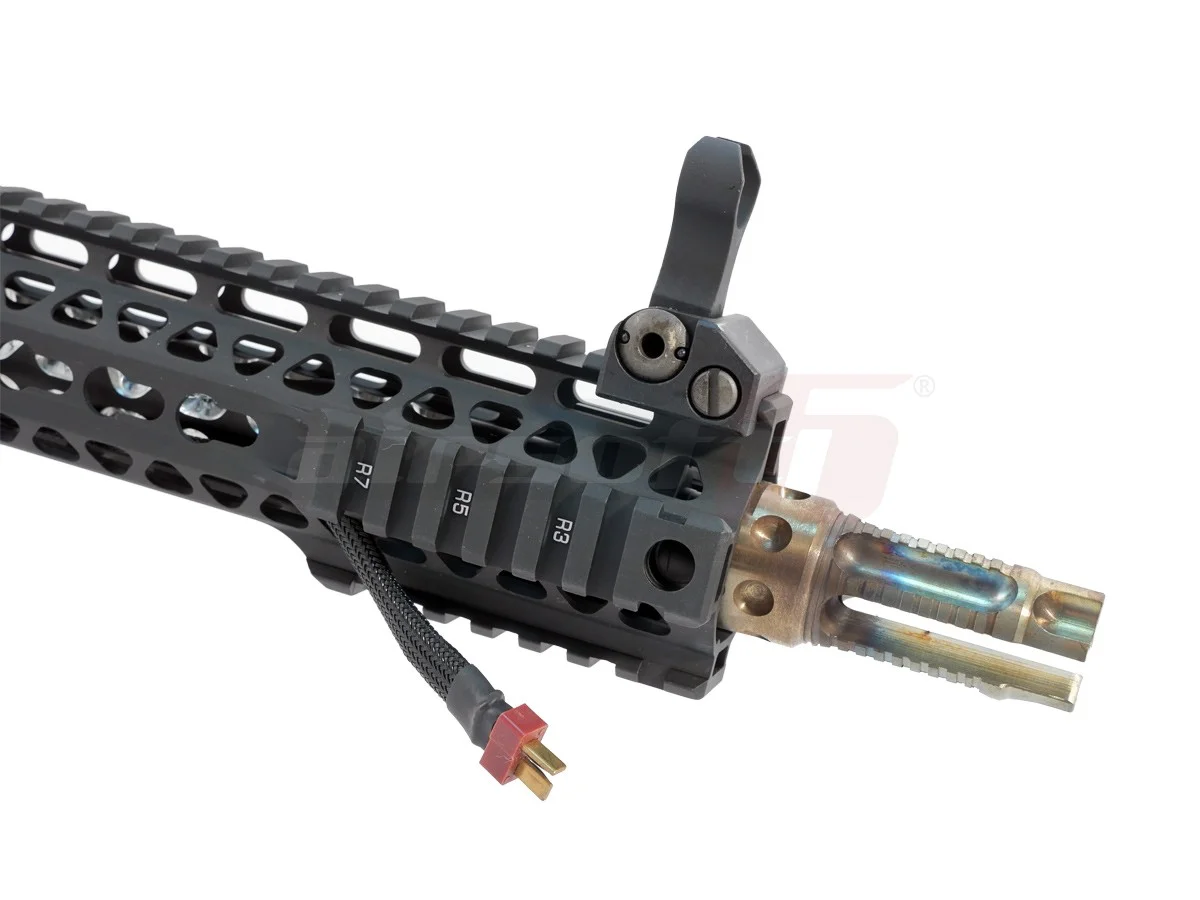

This replica, like the existing G&P replica line, is equipped with Deans connectors. An external box is required for power, mounted at the front. Unfortunately, the entire recoil assembly has taken up most of the space intended for a possible battery location. We recommend purchasing a PEQ-type box or another model of external box to store the battery. In terms of voltage, the replica can operate with 9.6V NIMH or 7.4V LiPo. Any higher voltage may severely damage the toy. We recommend not using low-quality BBs and not reusing BBs as the replica may malfunction.
