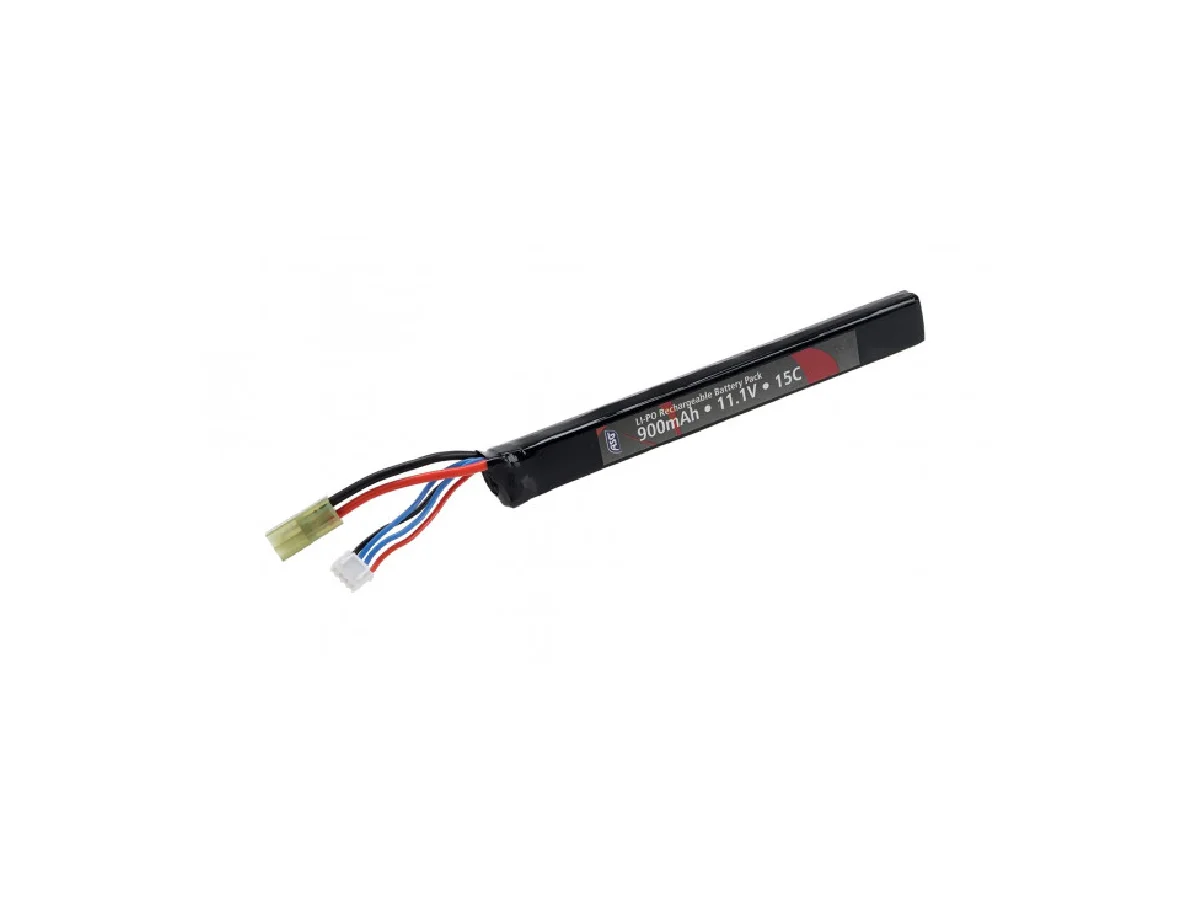

ASG LiPo 11.1V 900mAh stick battery

Presentation

This ASG battery is a LiPo type and is composed of 3 cells forming a compact assembly. It has a voltage of 11.1V and a capacity of 900mAh. The battery technology allows very compact dimensions of the entire assembly, making it suitable for mounting in spaces intended for very small batteries. The 20C discharge of the battery allows for an optimal current supply for the current needs of the replica.

The insulation of the battery is well done, and the wires and connectors are of high quality. This battery is equipped with a Mini Tamiya plug.

ATTENTION:

• Lithium ion Polymer (LiPo) batteries can be extremely dangerous.
• Users must take all precautionary measures for: potential fire hazards, personal injury, and damage to property.
• With improper use, damage, or manufacturing defects, LiPo batteries can cause explosions, fire, smoke, and risk of intoxication.
• By purchasing this type of batteries, the user assumes responsibility for any risks associated with LiPo batteries.
• LiPo batteries are not toys and should not be left within reach of children as they can pose a real danger to their health.
• LiPo batteries should not be thrown into fire, placed in an oven, or microwave as they can explode.
• LiPo batteries contain/may emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries with care and avoid any contact with the skin, eyes, or other parts of the body. In case of contact, rinse thoroughly with water and seek medical attention immediately.
• Do not attempt to charge mechanically or chemically damaged batteries.

Actions that lead to battery damage

• Charging LiPo batteries with an unbalanced charger and without automatic charge cutoff.
• Connecting in series or parallel a cell or another battery even if they appear similar.
• Exceeding maximum and minimum operating voltages.
• A decrease or increase in temperature outside the allowed limits.
• Excessive charging current.
• Short circuiting the battery terminals.
• Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or piercing.
• Contact with liquids.
• Using an improper charging setup.
• Using inadequate, improvised charging cables.

General Information

• LiPo batteries are composed of cells.
• The parameters of these batteries are: Voltage measured in Volts (V), Capacity measured in milliampere-hours (mAh), and instantaneous discharge (C).
• Each LiPo battery has a power plug and a charging plug.
• The power plug is used to power the device being powered.
• The charging plug is exclusively used for charging the battery. (in some cases, charging is done through both the power and charging plugs)
• Charging the battery is done using the charging plug, and in some advanced chargers, it is necessary to connect the power plug as well.
• LiPo batteries are charged with special chargers for LiPo batteries that have a voltage balancing function for each cell and automatic charge cutoff.
• Each LiPo battery has a maximum charging rate of 1.05X of the battery capacity, which should not be exceeded during charging.
• Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
• During operation or charging, the battery temperature should not drop below 0°C or rise above 50°C.
• For long-term storage, the battery capacity should be between 15 and 25% of the maximum value.
